£36.60

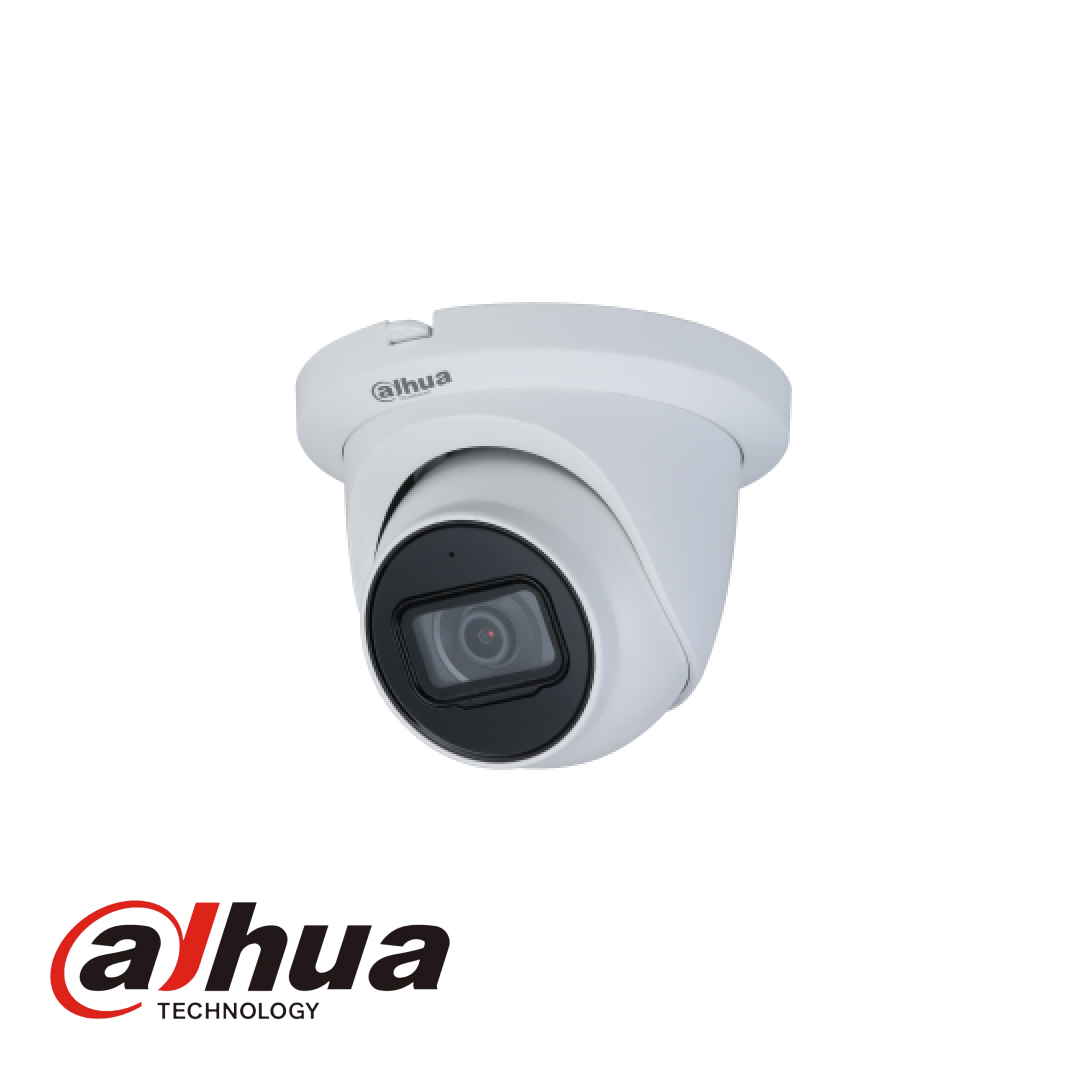

DH-IPC-HDW1230T1P-QH2

DahuaEyeball Cameras

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access

- +
Tags:

Description

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux @F2.0
S/N Ratio >56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0° to 355°

Tilt: 0° to 78°

Rotation: 0° to 360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0

3.6 mm: F2.0
Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)		 15.4 m

(50.5 ft)

 7.7 m

( 25.3 ft)

 3.9 m
(12.8 ft)
3.6 mm 49.7 m

(163.1 ft)

 19.9 m

(65.3 ft)

 9.9 m
(32.5 ft)		 5.0 m
(16.4 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6400 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certification
Certifications CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 1.4W (12V DC); 2.2W (PoE)

Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE)
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing Inner core: Metal + Plastic

Cover: Plastic

Decoration ring: Plastic

Pedestal: Plastic
Product Dimensions 85.5 mm × Φ109 mm (3.4″ × Φ4.3″)
Net Weight 0.24 kg (0.5 lb)
Gross Weight 0.37 kg (0.8 lb)
